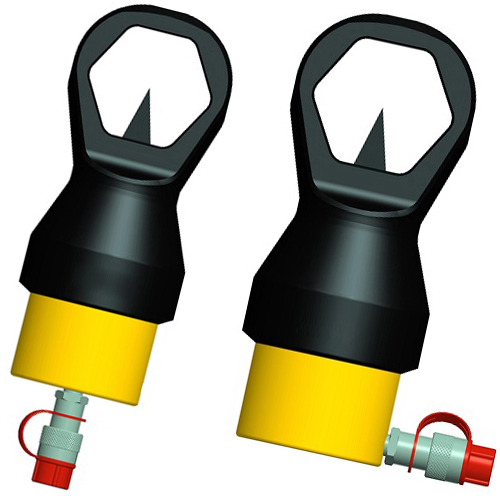

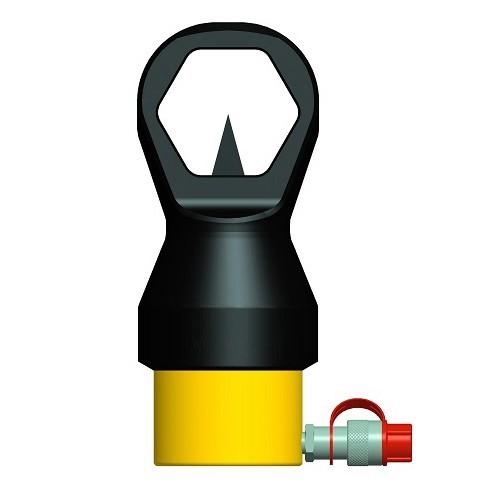

Customized Hydraulic Nut Splitters
KTSL Series Hydraulic Nut Splitters, for custom solution Nut Cutter.
Repair work frequently encountered nut and unable to open, the traditional method - hot! Poor safety,
economical efficiency, easy injury equipment hydraulic nut splitting device can easily
will not damage the bolt nut split - new tools, new method and high efficiency..

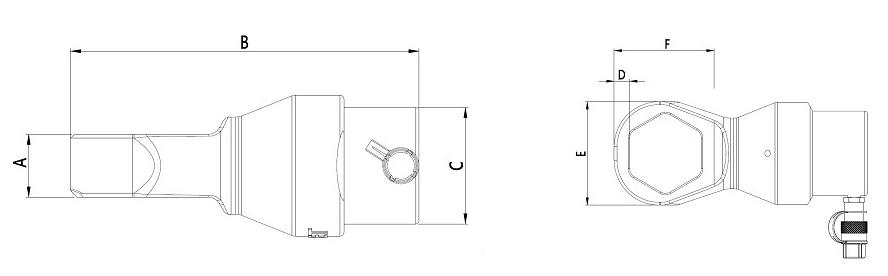

Model
No. | Nut DIA
in(mm) | Nut A.F
in(mm) | "A"
in(MM) | "B"
in(MM) | "C"
in(MM) | "D"
in(MM) | "E"
in(MM) | "F"
in(MM) | Weight
Ib(kg) | rcmd
|
| KTSL 105 | 7/16"-7/8"
(11.1MM-22.2MM) | 5/8"-1 7/16"
(15.9MM-36.5MM) | 1 1/2"
(38.1MM) | 11"
(294.4MM) | 3.969"
(100.8MM) | 0.421"
(10.7MM) | 2.867"
(72.8MM) | 7.479"
(190.0MM) | 20LBS
(9.1KG) | hand pump |
| KTSL 200 | 7/8"-1 1/4"
(22.2MM-31.8MM) | 1 5/16"-2"
(33.3MM-50.8MM) | 1 1/2"
(38.1MM) | 11 3/4"
(298.5MM) | 3.969"
(100.8MM) | 1/2"
(12.7MM) | 3.618"
(91.9MM) | 8.001"
(203.2MM) | 21LBS
(9.5KG) | hand& electric pump |
| KTSL 204 | 1 1/4"-1 1/2"
(31.8MM-38.1MM) | 1 7/8"-2 3/8"
(47.6MM-60.3MM) | 2 1/4"
(57.2MM) | 16.100"
(408.9MM) | 6"
(152.4MM) | 0.687"
(17.4MM) | 3.903"
(99.1MM) | 11.474"
(291.4MM) | 61LBS
(27.7KG) | hand& electric pump |
| KTSL 210 | 1 3/8"-1 3/4"
(39.4MM-44.5MM) | 2 1/16"-2 3/4"
(52.4MM-70MM) | 2 1/4"
(57.2MM) | 16.100"
(408.9MM) | 5.969"
(151.6MM) | 0.672"
(17.1MM) | 4.500"
(114.3MM) | 11.375"
(288.9MM) | 62LBS
(28.1KG) | hand& electric pump |
| KTSL 308 | 1 3/4"-2 1/4"
(44.5MM-57.2MM) | 2 5/8"-1/2"
(66.7MM-88.9MM) | 3"
(76.2MM) | 17.150"
(450.8MM) | 7 1/8"
(181MM) | 0.875"
(22.2MM) | 5 3/4"
(146.1MM) | 17 3/4"
(450.9MM) | 95LBS
(43.1KG) | electric pump |

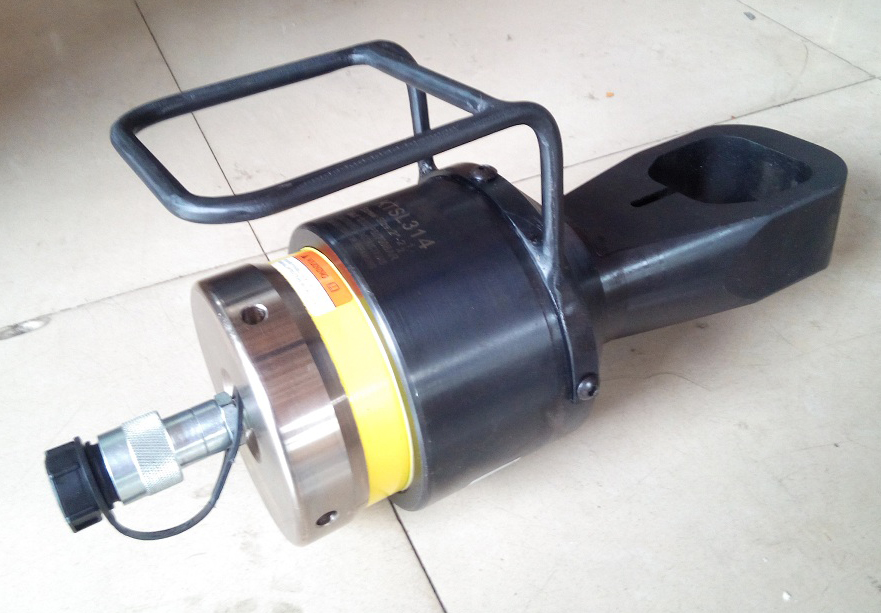

| KTSL 314 | 2"-2 1/2"
(50.8MM-63.5MM) | 3"-3 7/8"
(76.2MM-98.4MM) | 3 1/8"
(79.4MM) | 18"
(457.2MM) | 7 1/8"
(181MM) | 0.875"
(22.2MM) | 6 1/4"
(158.8MM) | 18"
(457.2MM) | 100LBS
(45.4KG) | electric pump |
| KTSL 404 | 2 1/2"-2 3/4"
(63.5MM-69.9MM) | 3 3/4"-4 1/4"
(95.3MM-108MM) | 3 3/4"
(95.25MM) | 22 3/4"
(577.9MM) | 9.875"
(250.8MM) | 1 1/8"
(28.6MM) | 7 1/2"
(190.5MM) | 18"
(457.2MM) | 205LBS
(93KG) | electric pump |
| KTSL 500 | 3"-3 1/4"
(76.2MM-82.6MM) | 4 1/2"-5"
(114.3MM-127MM) | 4 1/8"
(104.8MM) | 23"
(584.2MM) | 9.875"
(250.8MM) | 1 1/8"
(28.6MM) | 9"
(228.6MM) | 19 1/4"
(489.0MM) | 210LBS
(95.3KG) | electric pump |
| KTSL 506 | 3 1/4"-3 1/2"
(76.2MM-88.9MM) | 4 7/8"-5 3/8"
(123.8MM-136.5MM) | 4 1/8"
(104.8MM) | 23 1/8"
(587.4MM) | 9.875"
(250.8MM) | 1 1/8"
(28.6MM) | 9.375"
(238.1MM) | 19 1/2"
(495.3MM) | 215LBS
(97.5KG) | electric pump |
| KTSL 608 | 3 3/4"-4"
(95.3MM-101.6MM) | 5 5/8"-6 1/8"
(142.9MM-155.6MM) | 5"
(127.0MM) | 24"
(609.6MM) | 12 1/2"
(1317.5MM) | 1.406"
(35.7MM) | 11.720"
(297.7MM) | 22"
(558.8MM) | 387LBS
(175.5KG) | electric pump |
1).Efficient and secure design;
2).Economy, the same model can be cut-to-size nut;
3).Accurate, when cutting does not hurt bolts;
4).Superior Blade resist and Chipping resistance;
5).can be cut intensity The highest level of nut;
6).According condition to demand,Can be designed for bevel tool Process;
7). Work pressure: 700 Bar (10000PSI).
Easily removing rusty nuts during railroad
construction is just one of many application
examples for the Hydraulic Nut Splitter
More information on detail, please feel free to contact me
|
|
